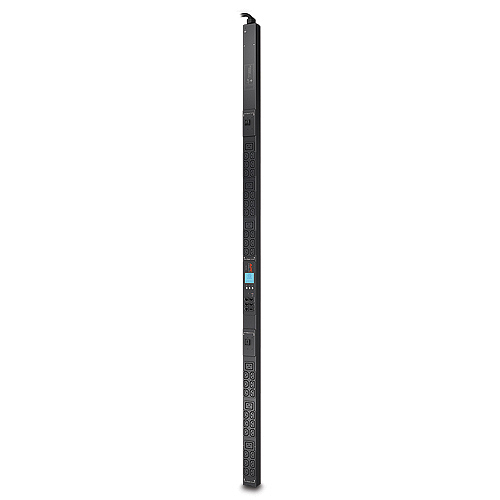

The APC Metered Rack PDU distributes reliable power within a rack through a single input and multiple output receptacles The AP8841 offers real-time remote monitoring of connected loads and user-defined alarms to help prevent circuit overloads that can cause accidental power loss to critical equipment The PDU can operate in a maximum ambient air temperature of up to 60°C (140°F) at full load The Network Management Card provides enhanced cybersecurity with secured interfaces and modified password policy The rack PDU integrates with EcoStruxure IT through a Network Management Card and can be accessed and configured via Web, SNMP, and Command Line Interface. User-interactive LCD interface details current, real power, voltage, and energy measurements for local user access. Embedded log memory with historical reporting enables users to meter power usage, optimize energy usage, and plan for capacity The PDU's locking IEC outlets, when used with locking power cords reduce the probability of accidentally disconnecting cords and dropping loads The rack PDU supports daisy-chaining of up to 4 PDUs on a single IP address An environmental monitoring port is available for external temperature/humidity monitoring (sensor sold separately, model AP9335T or AP9335TH) The rack PDU comes with a standard two-year warranty Enables a quick recovery from overload events and breakers are ultra low profile. Packaging Includes PDU, Installation guide, Rack mounting brackets, Safety guide, Serial configuration cable

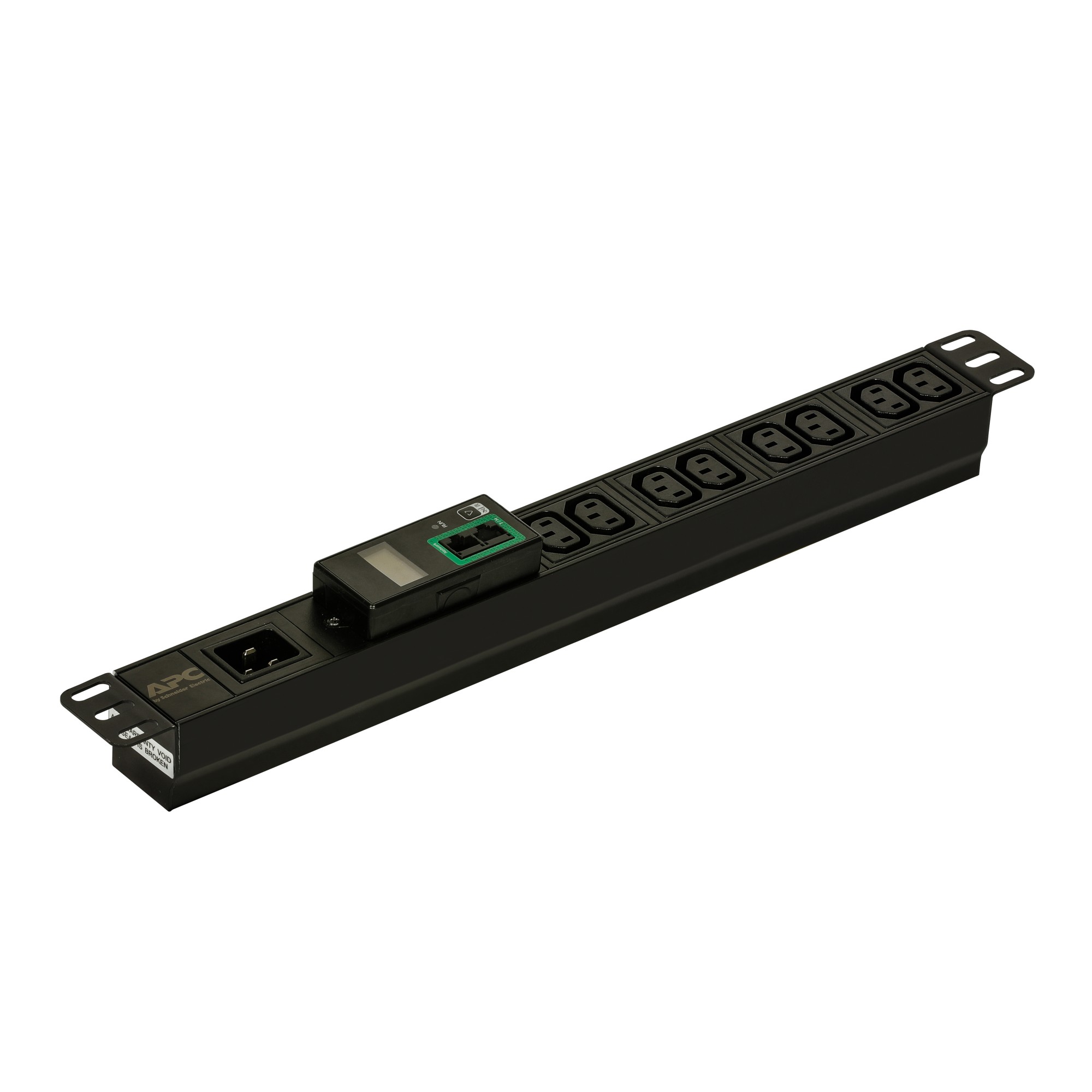

APC Easy Metered Rack PDU EPDU1016M is Easy-to-install and easy-to-use PDU, making rack power distribution easy and intelligent. This provides real-time remote monitoring, power management of connected loads, and much more features than the average power strip. EPDU1016M has IEC 60320 C20 200-240V type inlet and eight IEC C13 type outlet sockets. This is horizontal rack mountable PDU in ultra light weight and smart, multifunctional new designed display. Full-featured user friendly network management web interface provides standards-based management via Web, SNMP, and Command Line Interface. Allows users to access, configure, and manage units from remote locations to save valuable time. Indicates overload and warning conditions based on the user-defined alarm thresholds. Alerts users of potential overloaded circuits. Quickly and easily upgrade firmware via network download for future product enhancements. Eliminates the need to replace products already installed in the field when new features are released. The packaging includes cable, installation guide, user manual and horizontal mounting brackets for quick and easy mounting in the rear of the enclosure. This can operate from -5° to +45°C temperation range and comes with 1 year of standard warranty. Full-featured network management interfaces that provide standards-based management via Web, SNMP, and Command Line Interface. Define alarm thresholds in order to avoid overloaded circuits. Network and visual alarms inform the user of possible problems.

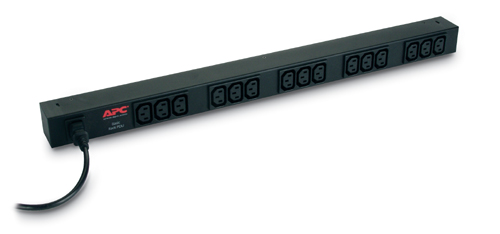

Description - APC Basic Rack PDU, Input : 208, 230V , Input Connection Type : IEC-320 C14 , Cord Length : 6.5 feet ( 1.98 meters ) , Output : 208, 230V , Output Connections : (15)IEC 320 C13 Features - Low Cost Power Distribution, Toolless Mounting Capabilities, Vertical Mounting Capabilities Includes - Installation Guide, Rack Mounting Brackets, Toolless Mounting Kit Output: Output Voltage(s) (main only) - 208, 230 V Maximum Total Current Draw per Phase - 10 A Output Connections - (15)IEC 320 C13 Input: Nominal input voltage - 208, 230 Input frequency (Hz) - 50/60 Hz Input Connection Type - IEC-320 C14 Cord Length - 6.5 feet ( 1.98 meters ) Acceptable Input Voltage - 200-240 VAC Maximum Input Current per phase - 10.0 A Load Capacity - 2300

- 13 Amp fused - Integral On/Off rocker switch - Approved to BS5733 - Fixing screws included - Height: 730.6mm (17U approx.) - Cable Length: 3m - Colour: Grey

- 13 Amp fused - Integral On/Off rocker switch - Approved to BS5733 - Fixing screws included - Height: 889mm (21U approx.) - Cable Length: 3m - Colour: Grey

- 13 Amp fused - Integral On/Off rocker switch - Approved to BS5733 - Fixing screws included - Height: 1049mm (24U approx.) - Cable Length: 3m - Colour: Grey

- 13 Amp fused - Integral On/Off rocker switch - Approved to BS5733 - Fixing screws included - Height: 1209mm (28U approx.) - Cable Length: 3m - Colour: Grey

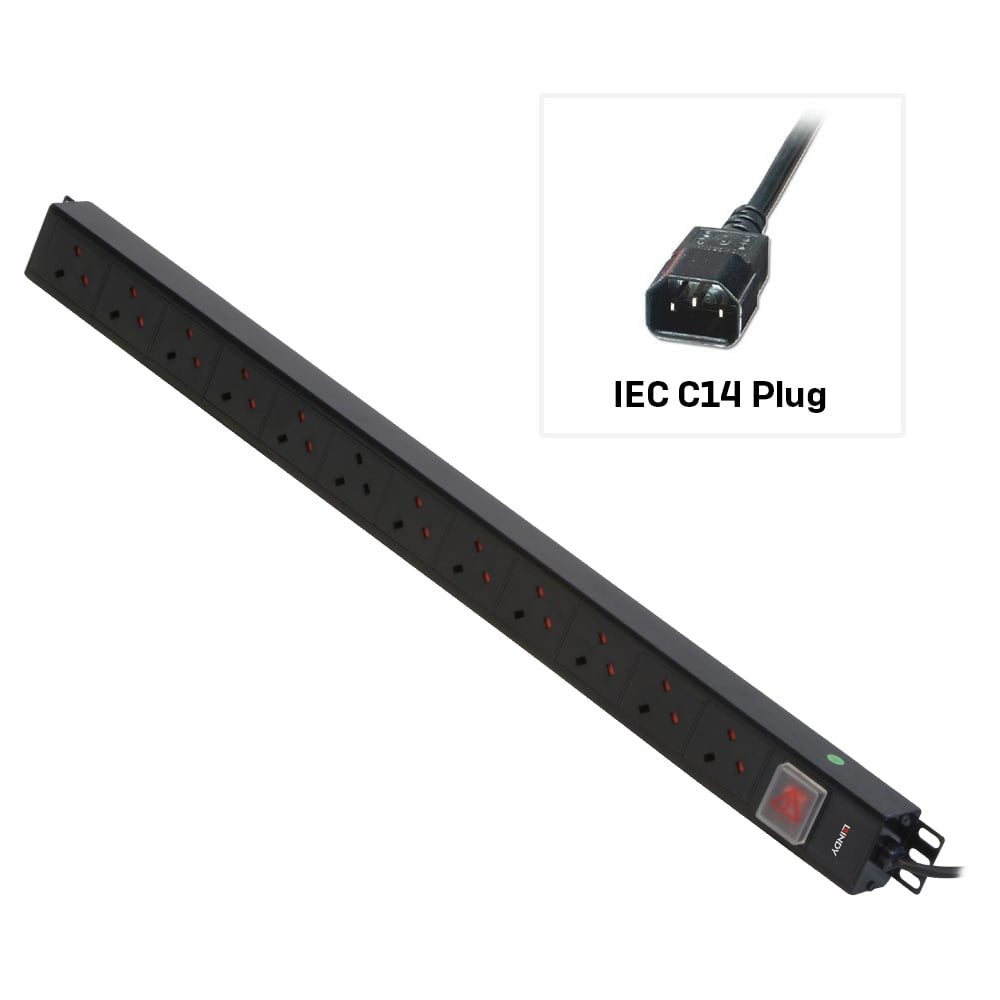

- IEC 10A C14 Male plug to 6 x 13A UK mains sockets (total load must not exceed 10A) - 10 Amp fuse built into the PDU - Integral On/Off rocker switch - Fixing screws included - Height: 730.6mm (17U approx.) - Cable Length: 3m - Colour: RAL 7044 (Grey)

- IEC 10A C14 Male plug to 8 x 13A UK mains sockets (total load must not exceed 10A)- 10 Amp fuse built into the PDU- Integral On/Off rocker switch- Fixing screws included- Height: 889mm (21U approx.)- Cable Length: 3m- Colour: RAL 7044 (Grey)

- IEC 10A C14 Male plug to 12 x 13A UK mains sockets (total load must not exceed 10A) - 10 Amp fuse built into the PDU - Integral On/Off rocker switch - Fixing screws included - Height: 1209mm (28U approx.) - Cable Length: 3m - Colour: RAL 7044 (Grey)
