ROG STRIX B650E-I GAMING WIFIDon’t be fooled by its flyweight frame; the Strix B650E-I packs walloping performance! With a jacked VRM and pumped with both DDR and PCIe 5, it’s a perfect partner for Ryzen 7000, particularly in stealthy SFF builds.DIY-FRIENDLY FEATURESM.2 Q-LATCHThe innovative Q-Latch makes it easy to install or remove an M.2 SSD without the need for specific tools. The design employs a simple locking mechanism to secure the drive and neatly eliminate traditional screws.ALL-ROUND PERFORMANCETo keep up with the big boys, the ROG Strix B650E-I comes stacked with a beefy power solution and a quiet thermal array, giving it a nice share of headroom to push for faster frequencies. But the speed doesn’t stop there: memory, graphics cards, and storage can all be cranked to the max thanks to DDR5 and PCIe 5.0 support.Fully embracing the new standard, the Strix B650E-I offers end-to-end PCIe 5.0 support to give unfettered bandwidth for the fastest SSDs and graphics cards available. The x16 expansion slot is Gen 5-ready, and is protected with a SafeSlot retention bracket. The onboard M.2 slot is also geared for PCIe 5.0, allowing for blistering 16 GB/s read and write speeds, while the other slot delivers still-impressive 8 GB/s transfers over its PCIe 4.0 interface.LEADING CONNECTIVITYDespite its tiny desktop footprint, the Strix B650E-I stands tall in the connectivity department, with beyond-Gigabit tethered and wireless networking options, and gigantic audio quality via the enhanced SupremeFX solution.WIFI 6EOnboard WiFi 6E technology takes advantage of newly available spectrum in the 6 GHz band to provide up to seven 160 MHz channels for ultrafast throughput and better performance in dense wireless environments.*WiFi 6E availability and features are dependent on regulatory limitations and co-existence with 5 GHz WiFi.Intel 2.5G EthernetLow-latency gaming, speedy file transfers, and high-resolution video streaming are among the many perks of onboard Intel® 2.5 Gbps Ethernet.PLAY IN STYLEThe understated black shrouds and PCB of the Strix B650-I make it a solid foundation for nearly any rig, especially when coordinated with the vast range of offerings in the ROG ecosystem.UNDENIABLY ROG STRIXThe mesh-like texture on the VRM cooling array and the unidirectional brush lines may seem minimalist by Strix standards, but the B650E-I is far from modest, proudly displaying a metallic ROG eye on the I/O shroud and subtle pink accents for a simple, unique flavor.SOFTWARE UTILITIESCustomize your rig through a suite of intuitive software and firmware utilities that let you maximize performance and tweak your experience to your liking.TWO-WAY AI NOISE CANCELATIONThis utility leverages a massive deep-learning database to reduce over 5 million types of background noise from incoming or outgoing audio, helping ensure crystal-clear communication in games or calls.THIS CHANGES EVERYTHING.FROM THIS NEW PLATFORM, YOU CAN SEE THE FUTUREBuild your next rig with an AMD Ryzen™ 7000 Series processor and ROG Strix B650E-I Gaming WiFi to experience advanced performance. With up to 16 “Zen 4” cores and 32 threads, boost clocks of up to 5.7GHz, and 80MB cache, the AMD Ryzen™ 7000 Series keeps you ahead of the game.1You’ll also gain access to new features for gamers with AMD Socket AM5, from the speed of DDR5 memory to the increased bandwidth of PCIe® 5.0. AMD Ryzen™ 7000 Series processors and AMD socket AM5 motherboards are unlocked for overclocking to personalize your experience. Gain even more performance when you overclock your DDR5 memory with AMD EXPO™ technology.2

Enable blisteringly fast speeds and any-way-up connectivityASUS ThunderboltEX 4 is a Thunderbolt™ 4 add-on card that offers 40 Gbps bi-directional bandwidth, USB4™ device compatibility, and DisplayPort™ 1.4. It supports up to five Thunderbolt devices in a daisy chain and enables up to 100-watt USB-C® charging for laptops.

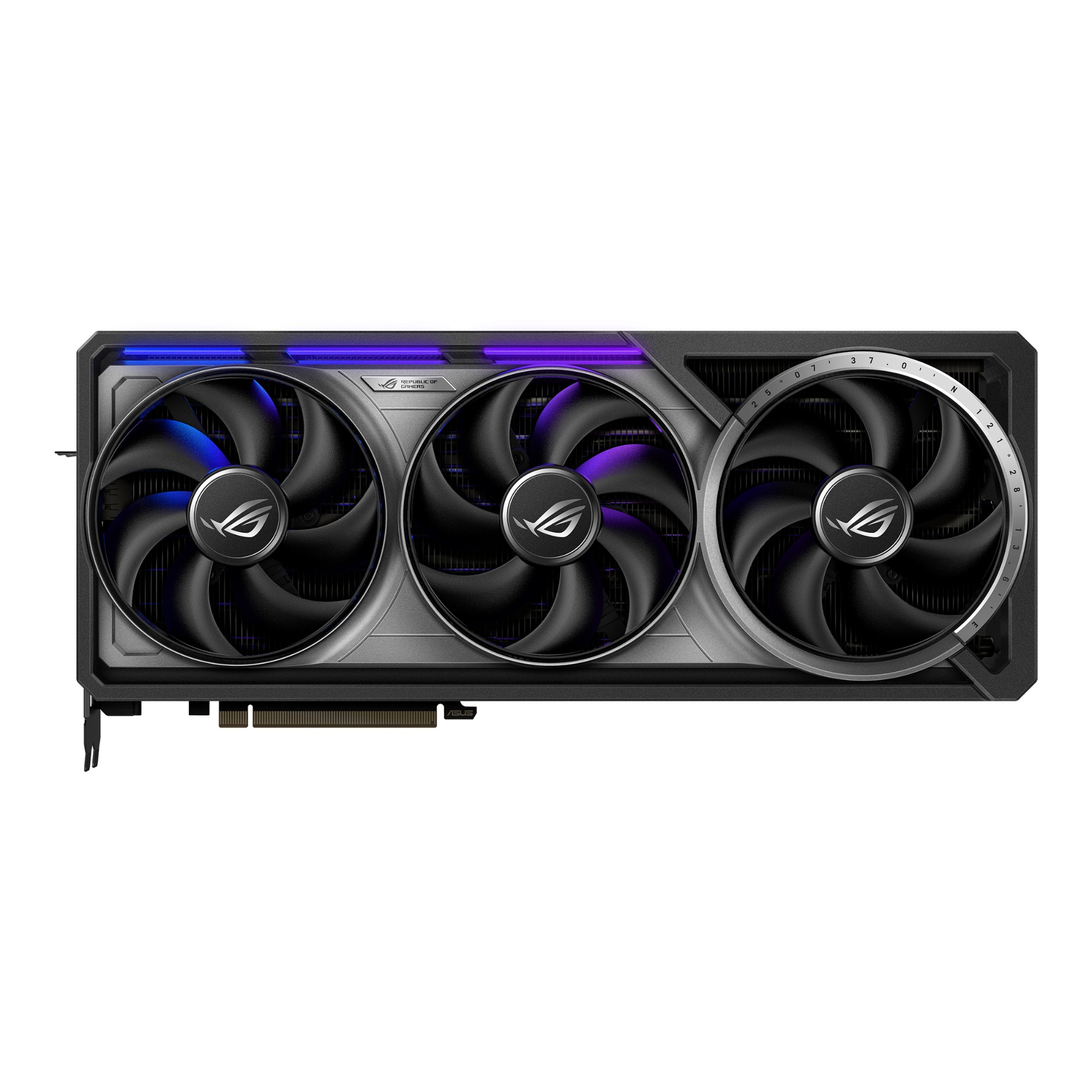

ROG Strix GeForce RTX™ 5070 TiFIND YOUR EDGEThe premium performance ROG Strix GeForce RTX 5070 Ti, featuring advanced cooling system with axial-tech fan, vapor chamber, phase-change GPU thermal pad and MaxContact design, lowering GPU temperature to reach higher performance. Aura sync provides endless possibilities for personalization with color or functional effects.Cooling ExpertiseAxial-tech UpgradesBigger and better. Axial-tech fans spin on dual-ball bearings and have been scaled up to propel more air through the card, setting the stage for lower temperatures, less noise, and higher performance.Reverse Rotation and 0dB TechnologyThe two side fans spin counterclockwise to reduce turbulence and improve airflow through the heatsink. All three fans stop when GPU temperatures are below 50°C, ensuring quiet operation during light tasks or less-demanding games. They resume operation above 55°C, following a speed curve that optimizes performance and noise levels.Vapor ChamberA vapor chamber and heatsink soaks up heat from the graphics card, helping to ensure premium performance in a variety of scenarios.Vented BackplateLarge backplate vents significantly enhance heat dissipation, helping to keep the GPU cooler during intense tasks. This additional airflow helps ensure optimal temperatures, boosting performance, longevity and stability by defending against overheating and thermal throttling.A shorter PCB with optimized component and trace layouts reduces power loss and allows heat to escape through a large backplate vent.MaxContact DesignMaxContact is an ASUS-exclusive manufacturing technique that effectively increases the surface area of the GPU heat spreader by 5% for improved thermal efficiency.Phase-Change GPU Thermal PadBy melting to effectively fill the gaps between the GPU and the thermal module, a premium phase-change GPU thermal pad provides superior thermal conductivity and enhanced heat dissipation, ensuring optimal performance and longevity for graphics cards under heavy loads.

ASUS Prime series motherboards are expertly engineered to unleash the full potential of AMD Ryzen™ 9000 series processors. The PRIME B850M-A-CSM motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. It’s designed to be Advanced AI PC-ready, offering the power and connectivity needed for demanding AI applications.ASUS Corporate Stable ModelASUS Corporate Stable Model (CSM) is a commercial program designed to provide stable and reliable motherboards. Offering up to 36-month product lifecycle support and 6-month end-of-life notice to allow sufficient lead times for your organization to get ready for product transitions. Each purchase of an ASUS CSM motherboard comes with ASUS Control Center Express - server-grade IT management software.ASUS Control Center ExpressASUS Control Center Express is an integrated IT monitoring and management software designed to deploy faster, simplify IT operations and improve productivity with comprehensive control and user-friendly functions. ASUS Control Center Express is compatible with over 100 ASUS motherboards to provide a high-quality, TCO-optimized solution for your business needs.Optimize IT endpoint managementDesigned to assist IT staff in monitoring and controlling devices within their corporate networks, and facilitate inventory checking in multiple locations remotely.Automate IT maintenanceAllows IT staff to schedule automatic updates of the latest BIOS, software and utilities to specific or all devices at off-peak times, enhancing system stability and IT operational flexibility.Securely manage all of endpointsSecurely manage endpoint configuration, portable storage access and PC software applications by enabling them to create grouping rules on individual devices.PerformanceAI SolutionsASUS AI Solutions include AI Advisor as your technical expert with expertise in PC performance.AI AdvisorASUS AI Advisor allows users to explore the functionality and advanced features of ASUS motherboards in a simple and straightforward way.PerformanceDigital Power DesignPRIME B850M-A-CSM features an 8+2+1 phase power design with discrete MOSFETs, ensuring efficient and stable power delivery for AMD processors plus steady performance for day-to-day use.The multi-layered printed circuit board design quickly dissipates heat around the voltage regulators to improve overall system stability and provide the CPU with more overclocking headroom.The Digi+ voltage-regulator module (VRM) delivers real-time control over voltage droop, automatically switching frequency and power-efficiency settings.Enhanced Memory & Storage PerformanceEnhanced DDR5 performanceComprehensive memory tuning options are the cornerstone of PRIME motherboards. The PRIME B850M-A-CSM maximizes the potential of your DDR5 modules, from entry-level to extreme-speed kits.2For entry-level modules without EXPO™ support, ASUS Enhanced Memory Profile (AEMP) automatically detects memory chips and provides optimized profiles for enhanced performance.For those looking to surpass stock DDR5 speeds, the PRIME B850M-A-CSM offers extensive AMD Extended Profiles for Overclocking (EXPO™) support and a wide array of UEFI settings for further performance tweaks.Three M.2 slots (up to 128 Gbps)PRIME B850M-A-CSM offers a total of three M.2 slots, including one that supports data-transfer speeds of up to 128 Gbps via PCIe 5.0, and two that support PCIe 4.0. This enables quicker boot-up and app load times with OS or application drives.CoolingCooler by designThe PRIME B850M-A-CSM motherboard is engineered with multiple onboard heatsinks and an array of hybrid fan headers to help ensure your rig stays cool and stable under intense workloads.Smart Cooling precisionASUS Fan Xpert 2+ASUS Fan Xpert 2+ software provides comprehensive control over fans. An Auto-Tuning mode intelligently configures all parameters with a single click. There’s also an Extreme Quiet mode that reduces chassis fan speeds to below the default minimum to keep your system whisper-quiet when performing light tasks. Fans can also be controlled via the UEFI BIOS.Cooler compatibilityASUS AIO coolers offer robust performance, high overclocking potential, bold aesthetics and customizable functionality for new motherboards, empowering you to build your dream gaming rig.FlexibilityEmpowering connectionsThis motherboard offers a versatile range of connectivity, including support for PCIe 5.0 slot and an arsenal of USB ports which includes Type-C® connections.Realtek 2.5 Gb EthernetRealtek 2.5 Gb Ethernet reduces CPU overhead and offers exceptionally high TCP and UDP throughput for faster, smoother data transfers.Front USB 5Gbps Type-C®This motherboard features a USB 5Gbps Type-C® front panel connector for speedy data transfers of up to 5Gbps.CustomizationPersonalizationThe PRIME B850M-A-CSM enhances the user experience across the board, from simplifying BIOS setting adjustments to offering customizable RGB lighting controls for a uniquely personal system aesthetic.UEFI BIOSThe UEFI interface delivers easy-to-use configuration options for PC beginners, and advanced features for veterans.ASUS DriverHubSimplify driver management with automatic detection, one-click installation and update for smooth, efficient system performance.Armoury CrateCustomize Aura Sync RGB and control ASUS devices. Includes product registration and updates.Aura SyncComplete RGB lighting control for enthusiast systems, ensuring seamless synchronization with compatible hardware.Addressable Gen 2 RGB headersThree addressable Gen 2 headers detect LED counts on compatible RGB devices, automatically adjusting lighting effects accordingly.CustomizationDIY friendlyThe PRIME B850M-A-CSM motherboard features EZ PC DIY innovations that simplify and speed up the PC building process, making DIY easy and convenient.Pre-mounted I/O shieldOur pre-installed I/O shield safeguards ports, simplifies the build process, increases functionality and enhances aesthetics for PC DIY enthusiasts.BIOS FlashBack™BIOS FlashBack™ simplifies BIOS updates. Just load the BIOS file onto a FAT32 USB stick, insert it into the BIOS FlashBack™ port, and press a button—no CPU or memory needed.SafeSlotPCIe 5.0 is twice as fast as PCIe 4.0. ASUS has adapted our SMT manufacturing for the faster SafeSlot, a reinforced metal sheath that ensures secure card installation and faster data speeds.Q-LED CoreThe Q-LED Core display produces color-coded lights during the Power-On Self-Test (POST) that can help you troubleshoot potential issues.Build for the most advanced pc for gaming and creatingWhen only the fastest will do, ASUS motherboards deliver. With faster dual-channel DDR5 memory support, AMD EXPO™ technology and PCIe® 5.0 support for both graphics and NVMe, you can play the most demanding games and deliver your biggest projects with the revolutionary performance of an ASUS motherboard and AMD Ryzen™ 9000, 8000, and 7000 Series processors.

RAID on CPUHyper M.2 x 16 card V2 is compatible with Intel® Virtual RAID on CPU (VROC) and the AMD Ryzen Threadripper platform for NVMe RAID support. Unused CPU PCle lanes can be assigned to storage, allowing you to create a bootable RAID array with multiple M.2 SSDs.Design for unthrottled transfer speedThe ASUS Hyper M.2 x16 V2 card provides four M.2 slots to let you expand your system with high-performance SSD storage. Designed for the latest generation of NVMe drives, the card features an upgraded power supply that provides up to 14W of power per drive, as well as a large heatsink and active fan to ensure drives stay cool for optimum performance.One card, 4X the bandwidthHyper M.2 x16 is designed specifically for Intel Virtual RAID on CPU (VROC) and the AMD Ryzen Threadripper platform for NVMe RAID support and features four M.2 slots, providing up to 128 Gbps of bandwidth per card.

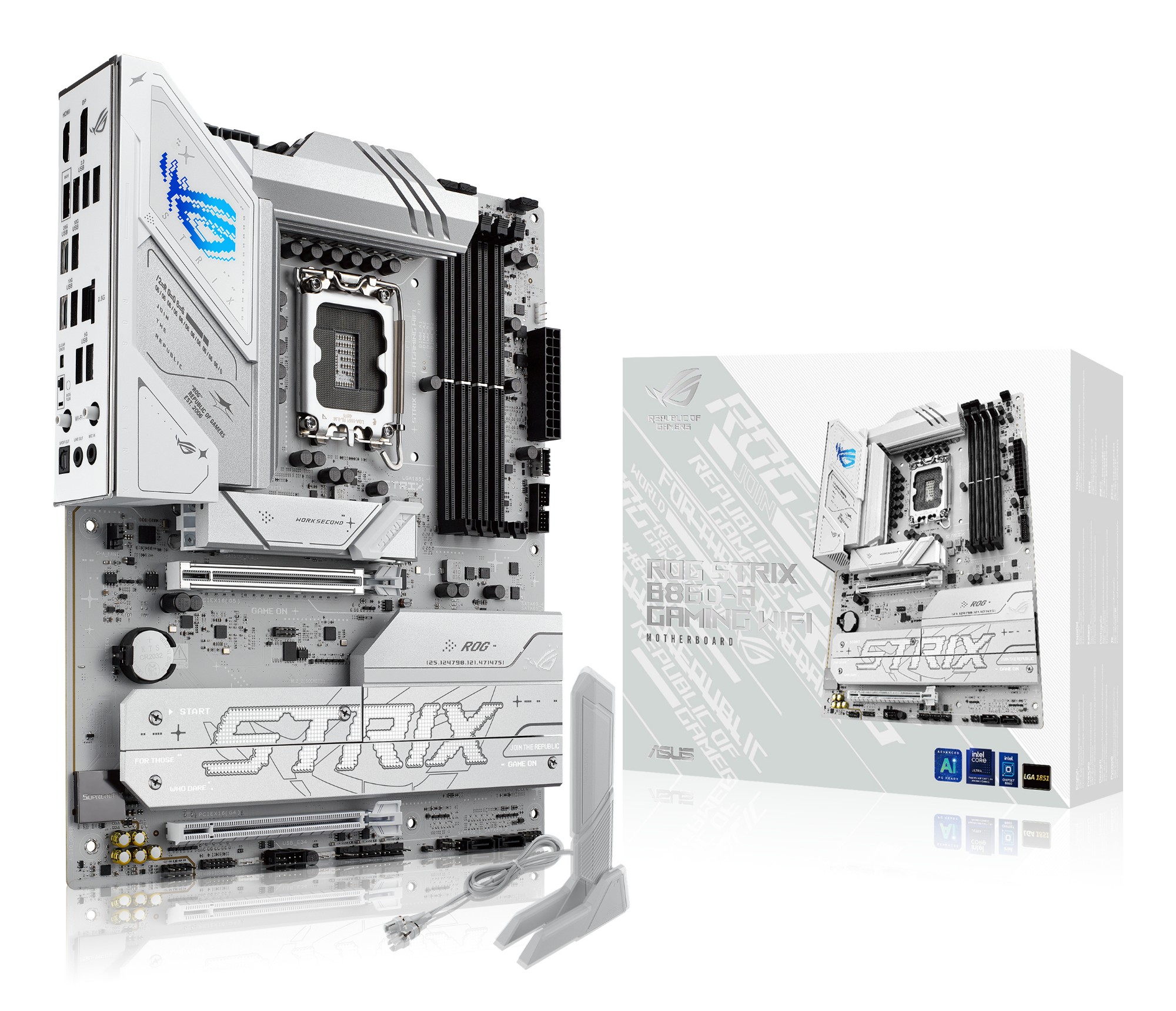

ROG STRIX B860-A gaming wifiWith NPU support and AI-enhanced solutions, the ROG STRIX B860-A Gaming WiFi is ready for advanced AI PC applications. Featuring a USB4® (20Gbps) port, PCIe® 5.0, and Aura Sync RGB lighting, it offers fast data transfers, versatile connectivity, and a customizable aesthetic to match your style.

ASUS TUF GAMING A620M-PLUS takes all the essential elements of AMD Ryzen 7000-series processors and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive cooling system, this motherboard goes beyond expectations with rock-solid and stable performance for marathon gaming. TUF GAMING motherboards also undergo rigorous endurance testing to ensure that they can handle conditions where others may fail. Aesthetically, this model incorporates rugged off-black and geometric design elements to reflect the dependability and stability that defines the TUF GAMING series.INTELLIGENT CONTROLComprehensive controls form the foundation of the ASUS TUF GAMING series. The TUF GAMING A620 motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work to maximize productivity.All-Around Energy EfficiencyThe Power Saving function contains several settings can easily optimize power consumption and maximize energy savings. You can enable a CPU power limit, darken Aura lighting, and set the fan profile to a power saving mode. You can also toggle the Power Saver plan that is built into Microsoft Windows.UEFI BIOSThe renowned ASUS UEFI BIOS provides everything you need to configure, tweak and tune your system. It offers intelligently simplified options for PC DIY beginners and comprehensive features for seasoned veterans.Armoury CrateThe ASUS-exclusive Armoury Crate centralizes easy control of supported gaming products. A single intuitive interface lets you customize RGB lighting for all compatible devices and link them to Aura Sync for unified illumination. It also offers information and control for a select and growing hardware ecosystem, with input device settings, Fan Xpert 2+ and Two-Way AI Noise Cancelation. Armoury Crate even features product registration, and a news section to stay in touch with the gaming community.ROCK-SOLID PERFORMANCEWith upgraded power delivery and comprehensive cooling options to fuel AMD's CPUs, plus support for faster memory and storage, TUF GAMING A620 motherboards are the perfect foundation for your next high-core-count AMD battle rig.Six-Layer PCB DesignMultiple PCB layers optimize heat management for critical components to keep them at their optimal operating temperatures.TUF ComponentsTUF ChokesCertified military-grade TUF chokes deliver rock-solid power to the CPU, improving system stability.TUF CapacitorsThe TUF 5K black metallic capacitors provide 52% wider temperature tolerance and a 2.5X-longer lifespan than standard motherboard capacitors.Digi+ VRMThe integrated Digi+ voltage-regulator module (VRM) is one of the finest in the industry, optimized for ultra-smooth and ultra-clean power delivery to the CPU at all times.DRAM Overclocking PerformanceComprehensive memory tuning options are the cornerstone of TUF GAMING motherboards. With TUF GAMING A620 motherboards, you can extract all of the potential out of your DDR5 modules, whether they're from an extreme-speed kit or an entry-level set that would otherwise be locked.PCIe 4.0 SupportDual M.2 slots support up to PCIe 4.0 and also provide NVMe SSD RAID support for incredible performance potential. Create a RAID configuration with up to two PCIe 4.0 storage devices to enjoy the fast data transfer speeds.Cooler By DesignEnlarged VRM HeatsinkThe extensive surface area of this heatsink covers the VRMs and chokes to improve heat dissipation.Comprehensive Fan ControlsTUF GAMING A620 motherboards feature comprehensive fan controls that can be configured via Fan Xpert 2+ utility in Armoury Crate or the award-winning ASUS UEFI BIOS.ConnectivityTUF GAMING A620 motherboards reach new heights of performance potential with the PCI Express, dual DisplayPort, while an arsenal of USB ports, including USB Type-A connectors with fast USB 3.2 Gen 1 connectivity and one front USB 3.2 Gen 1 Type-C® connector for compatible cases.EASY PC DIYThe TUF GAMING line offers easy setup for all builders. The TUF GAMING Alliance ecosystem grants compatibility, while Armoury Crate has Fan Xpert 2+, hardware info, Two-Way AI Noise Cancelation, RGB options and peripheral settings. This platform has intuitive tools to build and optimize dream rigs.Build With ConfidenceTUF GAMING Alliance is a collaboration between ASUS and trusted PC component brands to ensure compatibility across a wide range of parts, such as PC cases, power supplies, CPU coolers, memory kits and more. With new partnerships and components being added regularly, the TUF GAMING Alliance will continue to grow even stronger.SafeSlot Core+SafeSlot Core+ is the ASUS-exclusive PCIe slot fortified with a one-piece stainless-steel brace that shields the slot to protect it from damage. The metal cover is tightly secured to the slot with hooks, and the entire assembly is firmly anchored to the PCB with strengthened solder points to provide a secure foundation for heavyweight graphics cards.ESD GuardsESD Guards prolong the life of components while preventing damage from electrostatic discharge, providing protection for up to +/- 10 kV of air discharge and +/- 6 kV of contact discharge — greatly surpassing the respective industry standards of +/- 6 kV and +/- 4 kV. Surface-mounted TVS diodes in a dual in-line package help protect your PC from voltage spikes.TUF LANGuardTUF LANGuard is a military-grade innovation that integrates advanced signal-coupling technology and premium surface-mounted capacitors to improve throughput, protecting the motherboard from lightning strikes and static electricity.Stainless Steel Back I/O PanelTUF GAMING motherboards have a corrosion-resistant stainless steel back I/O panel bonded with chromium oxide to provide a lifespan that’s three times longer than traditional panels. With this protective feature, TUF GAMING motherboards passed 72-hour salt fog testing, while other brands only passed 24-hour testing.BIOS FlashBack™BIOS FlashBack™ is the simplest and safest (UEFI) BIOS update method. Simply drop the (UEFI) BIOS file onto a FAT32 formatted USB stick, plug it into the USB BIOS FlashBack™ port and press the button. Updates can even be performed without a memory or a CPU installed.M.2 Q-LatchThe innovative Q-Latch makes it easy to install or remove an M.2 SSD without the need for specific tools. The design employs a simple locking mechanism to secure the M.2 SSD, neatly eliminating the need for screws.Q-LED CoreThe Q-LED Core display produces light patterns by power LED during the Power-On Self-Test (POST) that can help users troubleshoot potential issues.IMMERSIVE GAMINGTUF GAMING A620 motherboards provide a feature-packed high-performance gaming package, with ultrafast networking for smoother online gameplay, pristine audio with positional cues for FPS Gaming, and onboard RGB lighting that syncs with attached gear to personalize your gaming atmosphere.2.5 Gb Ethernet2.5 Gb on-board Ethernet kicks your LAN connection up a notch with a bandwidth improvement of up to 2.5X. Using your existing LAN cable, you can take advantage this networking upgrade to experience smoother, lag-free gaming, immediately stream high-resolution videos and enjoy faster file transfers.Two-Way AI Noise CancelationThis powerful ASUS-exclusive utility leverages a massive deep-learning database to reduce background noise from the microphone* and incoming audio while preserving voices. Distracting keyboard clatter, mouse clicks and other ambient noises are removed so you can hear and be heard with perfect clarity while gaming or during calls.*An audio splitter (3.5 mm audio jack Y-cable) is necessary when using a 3.5 mm headset.Realtek 7.1 Surround SoundThe unique audio codec designed in close collaboration with Realtek for TUF GAMING A620 motherboards features an unprecedented 98 dB signal-to-noise ratio for the stereo line out, providing pristine audio quality.Outshine The CompetitionA well-tuned system deserves a matching aesthetic. The TUF GAMING A620 series features edge lighting to enhance its rugged look, and ASUS Aura offers full RGB control with presets for built-in LEDs and third-party strips. It can all sync with an ever-growing portfolio of Aura-compatible hardware.Addressable Gen 2 RGB HeadersThree addressable Gen 2 RGB headers will support up to 500 LEDs on Gen 2 RGB devices, empowering Aura Sync to automatically tailor lighting effects across your whole system. The new headers also offer full backward compatibility with existing Aura Sync gear.

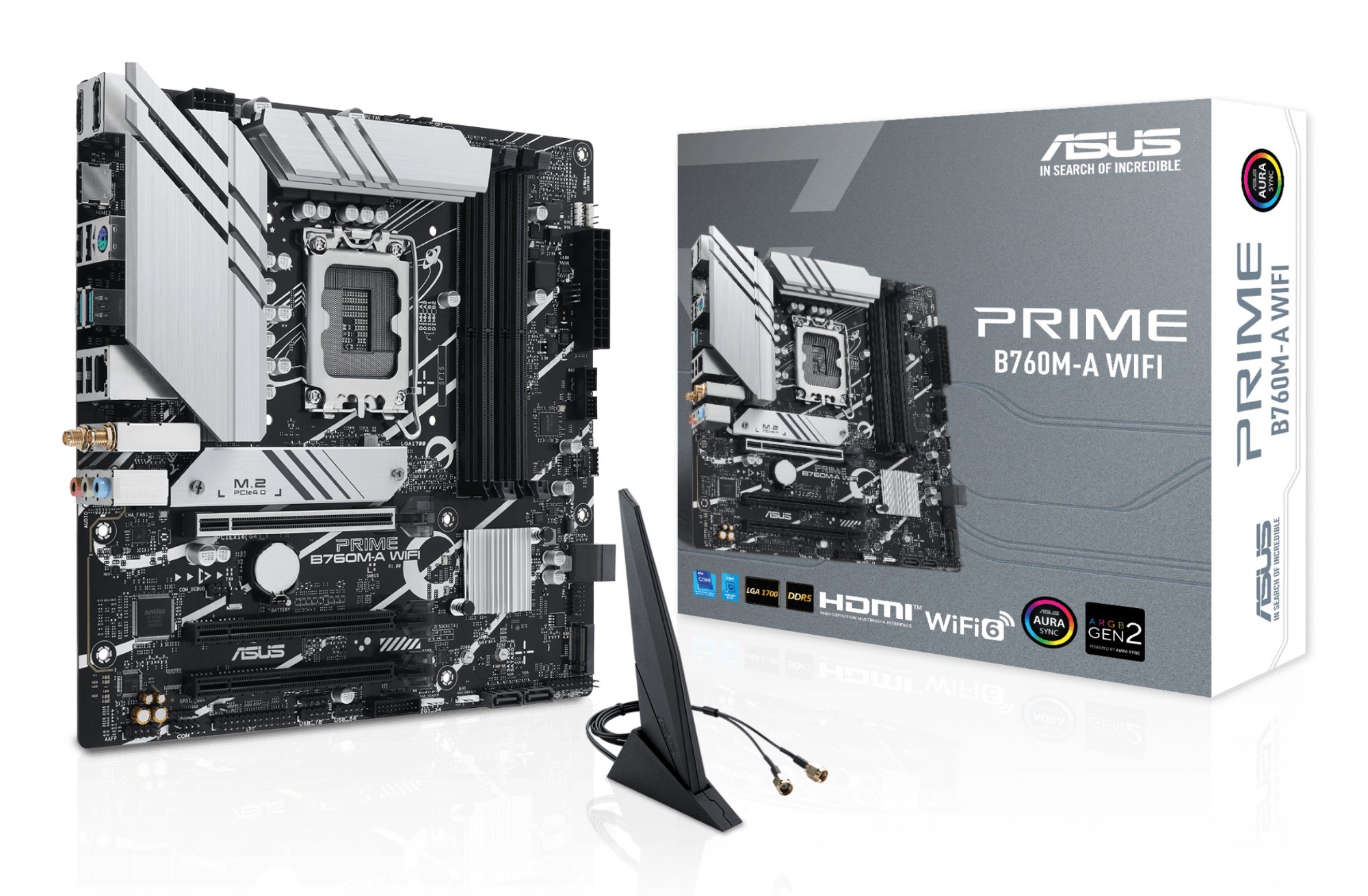

ASUS Prime series motherboards are expertly engineered to unleash the full potential of 13th Gen Intel® Core™ Processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, PRIME B760M-A WIFI provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features.FLEXIBILITYComprehensive controls form the foundation of the ASUS PRIME series. The PRIME B760 motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work to maximize productivity.Intelligent ControlASUS Intelligent Control makes your PC smart. Along with taking care of complex tuning and dynamically optimizing essential aspects of your system, it offers intelligently simplified options for newcomers to PC DIY, as well as more comprehensive features for seasoned veterans.All-Around Energy EfficiencyThe Power Saving function contains several settings can easily optimize power consumption and maximize energy savings. You can enable a CPU power limit, darken Aura lighting, and set the fan profile to a power saving mode. You can also toggle the Power Saver plan that is built into Microsoft Windows.Flexible Air- and Liquid-Cooling ControlsASUS Fan Xpert 2+ software provides comprehensive control over fans and all-in-one (AiO) coolers. Whether cooling with air or water, an Auto-Tuning mode intelligently configures all parameters with a single click. There’s also an Extreme Quiet mode that reduces chassis fan speeds to below the default minimum to keep your system whisper-quiet when performing light tasks. Fans, AiO coolers can also be controlled via the UEFI BIOS.Precise Digital Power ControlThe Digi+ voltage-regulator module (VRM) delivers real-time control over voltage droop, automatically switching frequency and power-efficiency settings. It also allows you to fine-tune your CPU for ultimate stability and performance.UEFI BIOSThe renowned ASUS UEFI BIOS provides everything you need to configure, tweak and tune your system. It offers intelligently simplified options for PC DIY beginners, as well as comprehensive features for seasoned veterans.background_decorationAdvanced Tuning for Serious TweakersAn intuitive Advanced mode offered via the UEFI lets you take complete control. A built-in search feature makes it easy to find options, and various advanced functions let you intelligently make nuanced adjustments so you can dial in performance just the way you want.Quick and Simple SetupEZ mode displays vital settings and stats and also offers guided wizards, drag-and-drop functionality, and one-click application of important settings — all to help you get your rig up and running in no time.Intuitive Graphical Fan ControlFine-tune individual fan settings simply by dragging a curve with the mouse.Aura On/Off Mode (Stealth)Easily enable or disable Aura RGB lighting or every onboard LED, for a subdued aesthetic touch.COOLINGPRIME B760 series are engineered with multiple onboard heatsinks and an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads.M.2 HeatsinkM.2 heatsink wards off throttling that can occur with M.2 storage during sustained transfers. The heatsink is held in place by captive screws, and these removable captive screws help reduce risk of drops or loss during heatsink removal.VRM Heatsinks and Thermal PadsVRM heatsinks and thermal pads improve heat transfer from the MOSFETs and chocks for better cooling performance.Cooler by DesignPRIME B760 series features comprehensive cooling controls that are configurable via Fan Xpert 2+ software or via the UEFI BIOS.Multiple Temperature SourcesEach header can dynamically reference three thermal sensors. Fan Xpert 2+ allows you to map the temperature of supported ASUS graphics cards to optimize cooling for GPU- and CPU-intensive tasks.Smart ProtectionA dedicated integrated circuit protects each fan header from overheating and overcurrent.4-Pin PWM/DC FanEach onboard header supports auto-detection of PWM or DC fans.PERFORMANCEThe PRIME B760 series are built to handle the high core counts and bandwidth demands of 13th Gen Intel® Core™ Processors. ASUS B760 motherboard provides all the fundamentals to boost daily productivity, so your system will be ready for action with stable power, intuitive cooling and flexible data transfer options.Robust Power DesignStable power is essential to extract every last bit of performance out of Intel® processors. The PRIME B760M-A WIFI is geared to cater to the demands of these high-core-count CPUs.ProCool ConnectorProprietary connectors augment the motherboard's link to the PSU with 8 pin connectors that pass 12 volts of power directly to the processors. Each jack features solid pins that can handle more current than hollow-pin connectors.Six-Layer PCB DesignMultiple PCB layers optimize heat management for critical components, providing more headroom to push CPUs beyond stock speeds.Stack Cool 3+2-ounce copper layers draw heat away from critical components to keep them at their optimal operating temperatures and provide more headroom to push CPUs beyond stock speeds.AEMP II for Ultimate DDR5 PerformanceASUS Enhanced Memory Profile II (AEMP II) is an exclusive firmware feature for PMIC-restricted memory modules. AEMP II is based on a CPU and memory module’s ability to train the memory chips on your kit, and it presents an optimized clock speed that can effortlessly unleash performance.Built through a flexible training method, AEMP II makes it easy to not only tune the memory above baseline settings but also maintain the stability of system operation, whether getting the most out of an entry-level module or priming a high-speed kit for ultimate performance.*Results may vary according to the capabilities of your CPU and memory modules.**The comparison chart is based on a test with an Intel® i9-13900K processor and 2x16 GB SK Hynix DDR5-4800 non-ECC UDIMMs, model HMCG78MEBUA081N.***Please ensure all memory modules are from a single validated kit. Do not combine DIMMs from multiple kits—even if they are the same make and model. Mixing and matching DIMMs can result in failure to boot, and compatibility cannot be guaranteed.****Always install DIMMs with the same CAS latency. For optimal compatibility, we recommend that you install memory modules of the same version or date code (D/C) from the same vendor. Check with your retailer to get the correct memory modules.ASUS OptiMem IIRevisions to the motherboard’s trace routing provide the latest processors with unrestricted access to memory bandwidth. ASUS OptiMem II technology carefully maps memory signal pathways across different PCB layers to reduce vias and adds shielding zones that significantly reduce crosstalk.Benefits of ASUS OptiMem II:- Improved memory stability and compatibility- Allows lower memory latencies at equivalent voltages- Improved memory frequency marginMotherboards with OptiMem II technology were tested with Synopsys HSPICE simulation softwareStorageTwo M.2 Slots (up to 64 Gbps)The PRIME B760 motherboard offers a total of two M.2 slots that support data-transfer speeds of up to 64 Gbps via PCIe 4.0, enabling quicker boot-up and app load times with OS or application drives.*Actual transmission speeds will be lower than the theoretical maximum speed.PCIe 4.0 SlotThe PRIME B760 motherboard is designed specifically for 13th and 12th Gen Intel® CPUs and offer PCIe 4.0 connectivity for the latest GPUs.USB 3.2 Gen 1 Type-C®Numerous USB ports support high-end rigs loaded with peripherals, including front USB Type-C® connectors with fast USB 3.2 Gen 1 for transmission speeds of up to 5 Gbps.WiFi 6The WiFi 6 module is compatible with the 802.11ax standard and pushes theoretical peak bandwidth up to an incredible 2.4Gbps. Perhaps more importantly for power users, it's optimized for more efficient operation on crowded networks with a lot of competing traffic. Pair your motherboard with ASUS WiFi 6 routers to fully experience the networking potential of WiFi 6.Realtek 2.5 Gb EthernetRealtek 2.5 Gb Ethernet reduces CPU overhead and offers exceptionally high TCP and UDP throughput for faster, smoother data transfers.LANGuardASUS LANGuard is a hardware-level network protection feature that integrates advanced signal-coupling technology and premium anti-EMI surface-mounted capacitors to improve throughput and ensure a more reliable connection.Audio ShieldingAudio shielding ensures precision analog/digital separation and greatly reduced multi-lateral interference.Dedicated Audio PCB LayersSeparate layers for left and right tracks ensures both channels deliver consistent, equal quality.Premium Audio CapacitorsProvides warm, natural, and immersive sound with exceptional clarity and fidelity.Aura SyncOutshine the CompetitionA well-tuned enthusiast system deserves a matching aesthetic. ASUS Aura offers full RGB lighting control with a variety of functional presets for the built-in RGB LEDs as well as strips and devices connected to the onboard RGB headers — and it can all be synced with an ever-growing portfolio of Aura-capable hardware.Addressable Gen 2 HeadersThree Addressable Gen 2 headers are capable of detecting the number of LEDs on second-gen addressable RGB devices, allowing the software to automatically tailor lighting effects to specific devices. The new headers also offer backward-compatibility with existing Aura RGB gear.Armoury CrateWithin a single intuitive interface, Armoury Crate offers easily customized Aura Sync RGB settings for every compatible device in your arsenal , plus controls for an ever-growing family of ASUS products, including keyboard and mouse preferences. Armoury Crate also integrates product registration and a news feed so that you never miss updates of interest to the ASUS community.Q-LED CoreThe Q-LED Core display produces light patterns by power LED during the Power-On Self-Test (POST) that can help users troubleshoot potential issues.SafeSlot Core+SafeSlot Core+ is the ASUS-exclusive PCIe slot fortified with a one-piece stainless-steel brace that shields the slot to protect it from damage. The metal cover is tightly secured to the slot with hooks, and the entire assembly is firmly anchored to the PCB with strengthened solder points to provide a secure foundation for heavyweight graphics cards.Overvoltage ProtectionWorld-class circuit-protecting power designAn exclusive circuit design with built-in voltage regulators to protect your motherboard from damage caused by unexpected high-level voltages from unstable or inferior power supplies.Stainless-Steel Back I/O3X corrosion-resistance for greater durabilityCorrosion-resistant stainless-steel back I/O panels bonded with chromium oxide have a lifespan that's three times longer than ordinary panels.

TUF GAMINGB860M-PLUS WIFIASUS TUF GAMING B860M-PLUS WIFI takes all the essential elements of the latest Intel® Core™ Ultra Processors (Series 2) and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive cooling system, this motherboard goes beyond expectations with rock-solid and stable performance for marathon gaming. TUF GAMING motherboards also undergo rigorous endurance testing to ensure that they can handle conditions where others may fail. This platform delivers the power and connectivity that advanced AI PC applications demand.

Take your build from B-tier to S with the Strix B650E-E! PCIe 5.0 and DDR5 propel your rig into the future, and innovative Q-Design features make system setup a breeze. All of its perks are backed by a tenacious power solution, hefty heatsinks, and exclusive overclocking technologies to drive you to the next level with Ryzen 7000.DIY-FRIENDLY FEATURESPCIE® SLOT Q-RELEASEA physical button unlocks the first PCIe slot’s security latch with one press, greatly simplifying the process of detaching a PCIe card from the motherboard when it’s time to upgrade to a new GPU or other compatible device.M.2 Q-LATCHThe innovative Q-Latch makes it easy to install or remove an M.2 SSD without the need for specific tools. The design employs a simple locking mechanism to secure the drive and neatly eliminate traditional screws.CLEAR CMOSThe Clear CMOS button quickly resets BIOS settings to factory default. It can also be used to reboot the PC if incorrect BIOS settings have been selected.BIOS FLASHBACK BUTTONBIOS FlashBack™ is a safe and simple way to update BIOS. Just drop the (UEFI) BIOS file onto a FAT32-formatted USB stick, plug it into the USB BIOS FlashBack port, and press the button. Updates can even be performed without having memory or a CPU installed.Q-CODE LED PANELThe on-board LED panel shows 2-digit diagnostic codes, providing a valuable reference for troubleshooting common boot problems and hardware issues.ALL-ROUND PERFORMANCEWith its jacked up power solution, beefy VRM heatsinks, and incredible throughput to connected components, the ROG Strix B650E-E goes toe-to-toe with the greatest that Ryzen 7000 can offer.Fully embracing the new standard, the Strix B650E-E offers abundant PCIe 5.0 support to give unfettered bandwidth to the fastest SSDs and graphics cards available. Both of the x16 expansion slots are Gen 5-ready, and are protected with SafeSlot retention brackets. Two of the onboard M.2 slots are geared for blistering 16 GB/s read and write speeds courtesy of their PCIe 5.0 interfaces, while the accompanying 4.0 pair deliver still-impressive 8 GB/s transfers. And all of the M.2 slots are covered with substantial heatsinks to dispatch the heat of next-gen drives.Lightly-threaded tasks get fantastic uplift using AMD Precision Boost Overdrive (PBO), but all-core frequencies can be pushed higher via traditional overclocking. The Dynamic OC Switcher automatically engages PBO or your preferred settings based on the CPU current or temperature, giving you the best of both worlds. Core Flex and PBO Enhancement can also be deployed to work in tandem with the Dynamic OC Switcher and further bolster performance.Core Flex empowers you to smash limits farther than ever before by letting you control current, power, and thermals in creative new ways. In its simplest form, you can let your system run unrestricted during lighter loads and set breakpoints to gradually reduce power consumption as temperature increases. But the system is extremely adaptable, supporting multiple user-controlled functions that can manipulate parameters independently so that you can bend CPU performance to your will.PBO ENHANCEMENTAMD Precision Boost Overdrive (PBO) pushes the CPU current and voltage budget to opportunistically increase performance. By aggressively tuning the PBO parameters, AMD’s algorithm can leverage the motherboard’s robust power solution to ramp up performance even higher.POWER ARCHITECTURE16 + 2 power stages rated to 70A each deliver ample current in order to drive Ryzen 7000 through any workload with ease.ALLOY CHOKES AND DURABLE CAPACITORSHi-end chokes and durable capacitors are engineered to resist extreme temperatures, enabling performance that exceeds industry standards.EIGHT-LAYER PCBA multi-layered printed circuit board design quickly dissipates heat around the voltage regulators to improve overall system stability and provide the CPU with more overclocking headroom.For those who want to fly past stock DDR5 speeds, the ROG Strix B650E-E is primed and ready for enthusiast-grade kits courtesy of vast AMD EXtended Profiles for Overclocking (EXPO) support. Seasoned veterans can further tweak performance via the extensive array of settings in the UEFI.ASUS Enhanced Memory Profile (AEMP) is an exclusive firmware feature for PMIC-restricted memory modules. AEMP automatically detects the memory chips on your kit and then presents optimized profiles with higher frequency and tighter timings that you can effortlessly apply to unleash performance.VRM HEATSINK ARRAYCovering the power solution are two thick heatsinks with strategic airflow channels for increased heat dissipation while powering high-performance Ryzen 7000 Series processors.HIGH-CONDUCTIVITY THERMAL PADSHigh-quality thermal pads are utilized between power stages and heatsinks, helping to improve heat transfer and reduce VRM operating temperatures.M.2 HEATSINKSHeatsinks cover every slot to help keep onboard NVME SSDs at optimal temperatures for consistent performance and reliability.CPU FAN HEADERSA dedicated pair of PWM/DC fan headers provides easy access to CPU coolers.AIO PUMP FAN HEADERA dedicated PWM/DC header connects self-contained water-cooling setups.4-PIN FAN HEADERSThe Strix B650E-E features five fan headers, each supporting auto-detection of PWM or DC fans.LEADING CONNECTIVITYBacking up its core performance, the ROG Strix B650E-E packs superfast WiFi and tethered networking, as well as immersive audio courtesy of its enhanced SupremeFX solution.WIFI 6EOnboard WiFi 6E technology takes advantage of newly available spectrum in the 6 GHz band to provide up to seven 160 MHz channels for ultrafast throughput and better performance in dense wireless environments.*WiFi 6E availability and features are dependent on regulatory limitations and co-existence with 5 GHz WiFi.Intel 2.5G EthernetLow-latency gaming, speedy file transfers, and high-resolution video streaming are among the many perks of onboard Intel® 2.5 Gbps Ethernet.SUPREMEFXROG SupremeFX is a unique blend of hardware and software technologies that provide superior audio. The Strix B650E-E implementation features the ALC4080 codec for high-resolution playback up to 32-bit/384 kHz across all channels. Front-panel output is streamed through the integrated Savitech amplifier that can drive high-fidelity acoustics to a wide variety of speakers and headsets.PLAY IN STYLEA black PCB and heatsinks match most hardware, and customizable RGB lighting furthers its flexibility. Pair the Strix B650E-E with other products from the diverse ROG ecosystem to create a fully customized gaming setup that reflects your personal style.UNDENIABLY ROG STRIXBold and elegant, the ROG Strix B650E-E bears a premium aesthetic similar to the Electro Punk peripheral series. Black shrouds cover the SSDs and chipset with contrasting powder-coated and brushed metal textures, and playful pink accents draw the gaze around the board. The I/O shroud is emblazoned with a split image of the ROG eye, the center of which can shine with a splash of customizable RGB.OUTSHINE THE COMPETITIONROG Strix motherboards feature ASUS Aura technology, enabling full lighting control and a variety of presets for both onboard RGB LEDs and third-party accessories. Effects can be easily synced across compatible ROG graphics cards, monitors, keyboards, and mice to give your setup a unified look.COOLER COMPATIBILITYThe ROG Strix B650E-E bears the same mounting hole alignment as AM4 platforms, so it is backward compatible with many existing coolers, including all AIO offerings from ASUS and ROG.THE ROG STRIX ECOSYSTEM AWAITSLevel up your game with ROG Strix. Enjoy complementary aesthetics, control, and compatibility across AIO coolers, cases, peripherals, and much more. ROG offers more choices than any other brand.SOFTWARE UTILITIESA myriad of ROG-exclusive tools put advanced system tuning and configuration at your fingertips.TWO-WAY AI NOISE CANCELATIONThis utility leverages a massive deep-learning database to reduce over 5 million types of background noise from incoming or outgoing audio, helping ensure crystal-clear communication in games or calls.AI NETWORKINGGameFirst VI optimizes networking performance by allocating bandwidth in real time based on application usage scenarios and corresponding learning algorithms.The renowned ROG UEFI (BIOS) provides everything you need to configure, tweak, and tune your rig. It offers intelligently simplified options for newcomers to PC DIY, as well as more comprehensive features for seasoned veterans.When you’re ready for a deeper dive, delve into the UEFI’s Advanced mode and take complete control. Advanced mode enables full control over every aspect of the motherboard, and a built-in search function helps you quickly find the setting you need.Designed to simplify setup, EZ mode presents vital settings and stats on a single page. With guided wizards, drag-and-drop functionality, and one-click application of important settings, your rig will be up and running in no time.The dashboard-style control panel of AI Suite 3 lets you fine-tune your system with ease. Get the best balance between performance, cooling, stability, and efficiency via simple and intuitive interfaces.The TurboV Processing Unit (TPU) is an intelligent onboard micro-controller that provides an array of system-tuning features, including the ability to fine-tune voltages, monitor system stats and adjust overclocking parameters.The Digi+ voltage-regulator module (VRM) delivers real-time control over voltage droop, switching frequency and power-efficiency settings, allowing you to fine-tune CPU voltage regulation for ultimate stability and performance.Modern processors feature per-core tuning, and the ASUS Turbo app makes use of this feature by letting you assign applications to specific processor cores, prioritizing computing power where it's needed most.THIS CHANGES EVERYTHING.FROM THIS NEW PLATFORM, YOU CAN SEE THE FUTUREBuild your next rig with an AMD Ryzen™ 7000 Series processor and ROG Strix B650E-E Gaming WiFi to experience advanced performance. With up to 16 “Zen 4” cores and 32 threads, boost clocks of up to 5.7GHz, and 80MB cache, the AMD Ryzen™ 7000 Series keeps you ahead of the game.1You’ll also gain access to new features for gamers with AMD Socket AM5, from the speed of DDR5 memory to the increased bandwidth of PCIe® 5.0. AMD Ryzen™ 7000 Series processors and AMD socket AM5 motherboards are unlocked for overclocking to personalize your experience. Gain even more performance when you overclock your DDR5 memory with AMD EXPO™ technology.2
