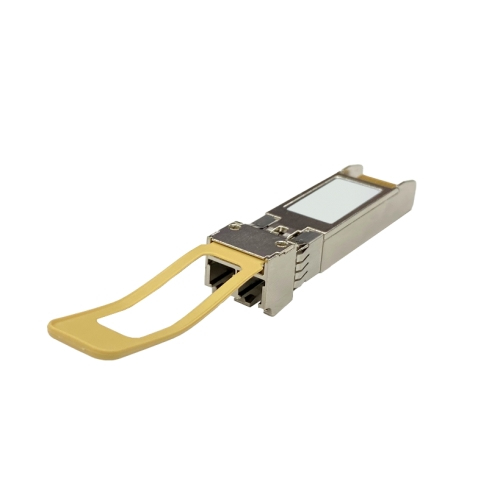

10Gb iSCSI/16Gb FC Universal SFP+ Module for ThinkSystem hybrid entry-level storage system

Cisco Catalyst IE3300 Rugged Series switches deliver high-speed up to 10 Gigabit Ethernet connectivity in a compact form factor, and are designed for a wide range of industrial applications where hardened products are required. The modular design of the Cisco Catalyst IE3300 Rugged Series offers the flexibility to expand to up to 26 ports of Gigabit Ethernet or up to 24 ports of Gigabit Ethernet and 2 ports of 10 Gigabit (10G) Ethernet with a range of expansion module options. The platform is built to withstand harsh environments in manufacturing, energy, transportation, mining, smart cities, and oil and gas. The IE3300 platform is also ideal for extended enterprise deployments in outdoor spaces, warehouses, and distribution centers.These switches run Cisco IOS® XE, a next-generation operating system with built-in security and trust, featuring secure boot, image signing, and the Cisco® Trust anchor module. Cisco IOS XE also provides API-driven configuration with open APIs and data models.The Cisco Catalyst IE3300 Rugged Series can be managed with powerful management tools such as Cisco DNA Center, and can be easily set up with a completely redesigned user-friendly modern GUI tool called WebUI. The platform also supports Full Flexible NetFlow (FNF) for real-time visibility into traffic patterns and threat analysis with Cisco Stealthwatch®.The Cisco Catalyst IE3300 Rugged Series offers edge compute capabilities to run IOx applications, enabling new capabilities at the industrial edge with no impact on switching performance. All models support the Cyber Vision sensor application to provide deep visibility of connected industrial assets and constant monitoring of your OT security posture. The Cisco Catalyst IE3300 Rugged Series delivers power over Ethernet (PoE) over up to 24 ports (with expansion module) to easily connect and power end devices such as IP cameras, phones, wireless access points, sensors, and more. The Gigabit series supports power budget of up to 360W for PoE/PoE+ and the 10G series of up to 480W for IEEE® 802.3af / 802.3at / 802.3bt (type 3 & type 4) to power the most advanced devices.

1G SFP transceiver, LC LX 10km SMF, for use with selected Aruba switches

.

The QSFP-40G-CSR-S is a pluggable optical transceiver with a duplex LC connector interface used for connectivity using MultiMode Fiber (MMF). The Cisco 40GBASE-CSR Modules support link lengths of 300 meters and 400 meters, respectively, on laser-optimized OM3 and OM4 multimode fibers. Customers benefit through the reuse of their existing 10 gigabit duplex MMF infrastructure as they migrate to 40 Gigabit Ethernet, while maintaining the same supported link distances as 10G Ethernet. Each QSFP-40G-CSR-S operates at four different wavelengths. Each of the four wavelengths operates at 10G over existing duplex multimode fiber using standard LC connectors. The Cisco QSFP-40G-CSR-S transceiver does not support FCoE.

The Cisco industrial din-rail power supplies offer a variety of rugged, reliable, and compact AC and DC power supply options to power Cisco’s industrial Ethernet switches, industrial routers (including industrial gateways), and industrial computing products. Some key features include:- Power supply options from 50W to 480W- Operating temperatures ranging between -40°C and +85°C- Din-rail mountable options- Enablement of high capacity Power over Ethernet (PoE)- Conformal coating options

Networking 5710 450W 48V FB DC Power Supply Unit

4G LTE can provide either primary connectivity or backup communications, offering network resiliency for business continuity. With greater agility and speed to deployment than wired solutions, 4G LTE can reduce network cost, and it complements wireline public and private network access. Practical applications of 4G LTE for organizations include parallel networks, primary connection, failover, in-vehicle connectivity, network convergence, and last-mile diversity. The 4G LTE NIM with the Cisco 4000 series Integrated Services Router leads the industry in bringing enterprise grade functions such as Quality of Service (QoS), Multi-Virtual Route Forwarding (Multi-VRF) , advanced VPN, and Unified Communications solutions over LTE.The Cisco 4G LTE NIMs (Figure 1) provide an enterprise-class 4G multimode LTE wireless WAN (WWAN) solution. With Cisco ISRs, 4G LTE is a powerful primary WAN access solution. Businesses can now run applications such as interactive video and telepresence on a primary 4G LTE connection, which is up to 50 times faster with far lower latency than third-generation (3G) links. These 4G modules support the latest Third-Generation Partnership Project (3GPP) Release 9 LTE standards. Cisco 4G multimode LTE WWAN NIMs provide persistent, reliable LTE connectivity with fallback and transparent handoff to earlier technologies. The cards provide bandwidth to support high-definition (HD) and peer-to-peer (P2P) video calls, providing customers with an excellent mobile broadband experience. The Cisco 4G LTE WWAN NIMs are tightly integrated with the services provided on the award-winning Cisco 4000 Series ISR devices, which deliver secure data, voice, video, and mobility services. The Cisco 4G LTE WWAN NIMs are supported on the modular Cisco 4200, 4300 and 4400 Series ISR devices.Enterprises are looking for ways to reduce deployment time, enable comprehensive media services, increase revenue, and improve business continuity. The Cisco 4G LTE WWAN NIMs, when coupled with a service provider’s wireless data plan, provide a rapidly deployable, high-bandwidth, reliable, and secure solution for branch offices and remote sites. With 4G LTE data rates, the Cisco 4G LTE WWAN NIMs offer a primary WAN link solution capable of running comprehensive branch-office services, including voice and video services.

.

Fan Module – Port-side intake (burgundy)
